Sample & Noise

Details

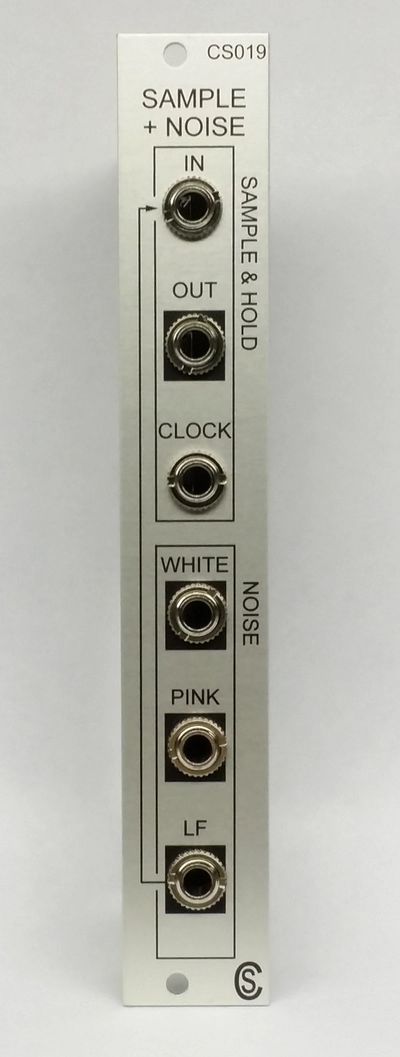

The Circuit Slices Sample + Noise is a dual-function module for Eurorack-compatible synthesizers. Packed in a narrow panel is a classic analog ‘sample & hold’ circuit and an analog noise source with three outputs – white, pink, and low frequency noise.


Specifications for the CS019 Sample + Noise

  • Noise level: Factory set to about +/- 5V (10Vpp) User Adjustable from +/- 10V to 0V
  • Noise output bands; White (flat-band); Pink (low-pass filtered to 3dB/octave for a less ‘bright’ or muffled noise signal.); LF (very low, non-periodic ‘frequency’ near 8 Hz. Useful as a random CV.)
  • Noise source: amplified transistor junction noise
  • S&H CLOCK trigger level: >1V (any level greater than 1V)
  • The S&H circuit samples and outputs voltage levels in the +/- 10V range.
  • Connections: Standard 3.5mm jacks
  • Depth: 37mm
  • Panel width: 4 HP
  • Power required: +12VDC @ 20mA, -12DC @ 17mA, using a standard Eurorack 10-pin power connection


Features for CS019 Sample + Noise

  • Classic analog ‘sample & hold’ and noise circuits in a narrow 4 HP module
  • Three noise outputs – white and two filtered
  • Adjustable noise output level
  • Low cost, due to modern surface-mount manufacturing production
  • DIY expansion option for the use of an internal clock source
  • Low power consumption (20mA or less per supply)
  • Includes power cable and case screws


List price $$60
